详细介绍
| Model No. | Power(W) | Arm Volt | Curret(Amp.) | Vibration frequency | Vibration force | INSUL. | AMB.TEMP. | DUTY | IP |
| DC200 | 80 | 12 | 6.8 | 3000 | 80KG | F | 40°C | CONT. | 65 |

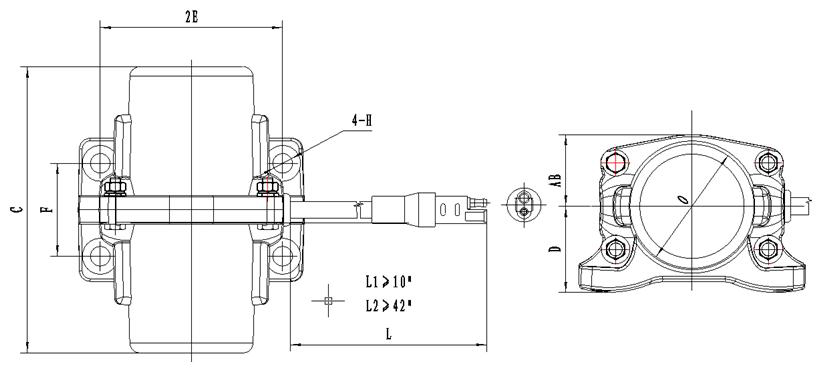

Dimension Chart (All Dimensions in Inch.)
| Model No. | D | 2E | F | H | O | AB | C |
| DC200 | 1.89 | 4 | 2 | 0.433 | 2.72 | 1.58 | 6.284 |
|
|
|
|
详细介绍
| Model No. | Power(W) | Arm Volt | Curret(Amp.) | Vibration frequency | Vibration force | INSUL. | AMB.TEMP. | DUTY | IP |
| DC200 | 80 | 12 | 6.8 | 3000 | 80KG | F | 40°C | CONT. | 65 |
Dimension Chart (All Dimensions in Inch.)
| Model No. | D | 2E | F | H | O | AB | C |
| DC200 | 1.89 | 4 | 2 | 0.433 | 2.72 | 1.58 | 6.284 |
