产品名称：NEMA56C 12V&24V TENV 低电压电机
详细介绍
NEMA56C 12V&24V TENV WITH REMOVABLE BASE
| Model No. | Power(HP) | Speed(RPM) | Arm Volt | NEMA FRAME | ENCL. | Curret(Amp.) | Torque(In.Ibs) | App.Weights(Ibs) | |
| MD01IL1 | 1/4 | 1750 | 12 | 56C | TENV | 21.0 | 9 | 21 | |
| MD01HL1 | 1/4 | 1750 | 24 | 56C | TENV | 10.5 | 9 | 21 | |
| MD02IL1 | 1/3 | 1750 | 12 | 56C | TENV | 27.0 | 12 | 23 | |
| MD02HL1 | 1/3 | 1750 | 24 | 56C | TENV | 13.5 | 12 | 23 | |
| MD03IL1 | 1/2 | 1750 | 12 | 56C | TENV | 39.0 | 18 | 25 | |
| MD03HL1 | 1/2 | 1750 | 24 | 56C | TENV | 20.0 | 18 | 25 | |

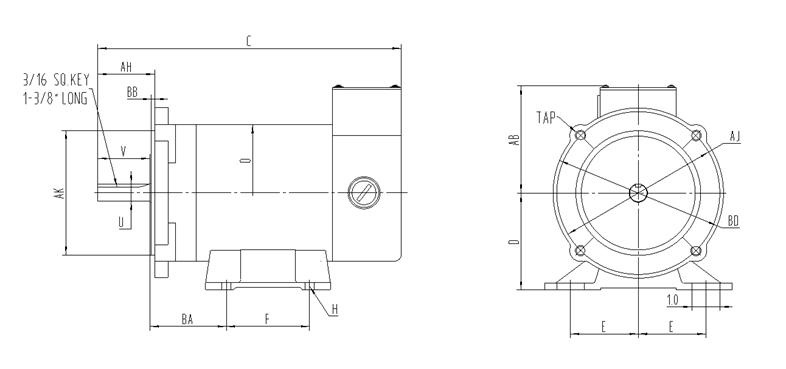

Dimension Chart (All Dimensions in Inch.)
| Model No. | D | 2E | F | 2F1 | H | O | U | V | AB | AH | AJ | AK | BA | BB | BD | TAP | C |
| MD01IL1 | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 10.2 |
| MD01HL1 | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 10.2 |
| MD02IL1 | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 10.2 |
| MD02HL1 | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 10.2 |
| MD03IL1 | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.1 |
| MD03HL1 | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.1 |
