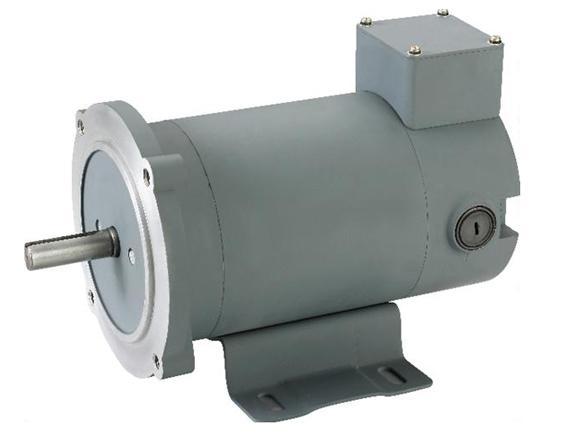

产品名称：NEMA56C 12V&24V TEFC 低电压电机
详细介绍
NEMA56C 12V&24V TEFC WITH REMOVABLE BASE
| Model No. | Power(HP) | Speed(RPM) | Arm Volt | NEMA FRAME | ENCL. | Curret(Amp.) | Torque(In.Ibs) | App.Weights(Ibs) | |
| MD01IL | 1/4 | 1750 | 12 | 56C | TEFC | 21.0 | 9 | 21 | |
| MD01HL | 1/4 | 1750 | 24 | 56C | TEFC | 10.5 | 9 | 21 | |
| MD02IL | 1/3 | 1750 | 12 | 56C | TEFC | 27.0 | 12 | 23 | |
| MD02HL | 1/3 | 1750 | 24 | 56C | TEFC | 13.5 | 12 | 23 | |
| MD03IL | 1/2 | 1750 | 12 | 56C | TEFC | 39.0 | 18 | 25 | |
| MD03HL | 1/2 | 1750 | 24 | 56C | TEFC | 20.0 | 18 | 25 | |
| MD04IL | 3/4 | 1750 | 12 | 56C | TEFC | 63.6 | 27 | 30 | |
| MD04HL | 3/4 | 1750 | 24 | 56C | TEFC | 31.8 | 27 | 30 | |
| MD04IX | 3/4 | 3600 | 12 | 56C | TEFC | 63.6 | 13 | 23 | |
| MD04HX | 3/4 | 3600 | 24 | 56C | TEFC | 31.8 | 13 | 23 | |
| MD05IL | 1 | 1750 | 12 | 56C | TEFC | 80.0 | 36 | 32 | |
| MD05HL | 1 | 1750 | 24 | 56C | TEFC | 40.0 | 36 | 32 | |
| MD05IX | 1 | 3600 | 12 | 56C | TEFC | 80.0 | 17.6 | 25 | |
| MD05HX | 1 | 3600 | 24 | 56C | TEFC | 40.0 | 17.6 | 25 | |
| MD06HL | 1.5 | 1750 | 24 | 56C | TEFC | 60.0 | 54.3 | 43 | |
| MD06HX | 1.5 | 3600 | 24 | 56C | TEFC | 60.0 | 26.4 | 30 | |

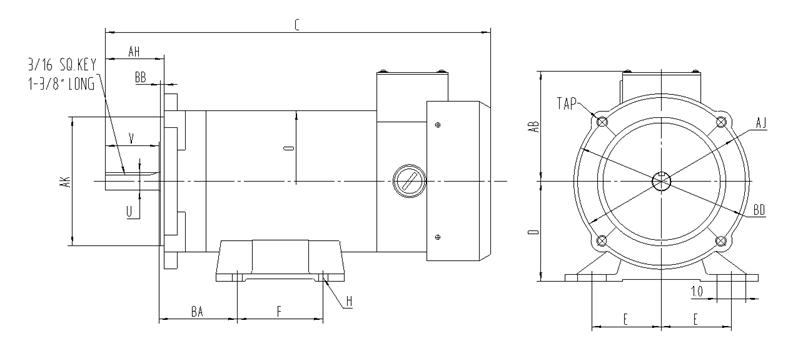

Dimension Chart (All Dimensions in Inch.)
&| Model No. | D | 2E | F | 2F1 | H | O | U | V | AB | AH | AJ | AK | BA | BB | BD | TAP | C |
| MD01IL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.6 |
| MD01HL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.6 |
| MD02IL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.6 |
| MD02HL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.6 |
| MD03IL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 12.4 |
| MD03HL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 12.4 |
| MD04IL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 14.0 |
| MD04HL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 14.0 |
| MD04IX | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.6 |
| MD04HX | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 11.6 |
| MD05IL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 14.8 |
| MD05HL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 14.8 |
| MD05IX | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 12.4 |
| MD05HX | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 12.4 |
| MD06HL | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 | 1.88 | 4.13 | 2.06 | 5.875 | 4.5 | 2.75 | 0.12 | 6.5 | 3/8-16 | 16.3 |
| MD06HX | 3.5 | 4.88 | 3 | / | 0.34Slot | 5.63 | 0.625 |
