Model No.	Power(HP)	Speed(RPM)	Arm Volt	NEMA FRAME	ENCL.	Current(Amp.)	Torque(In.Ibs)	App.Weights(Ibs)

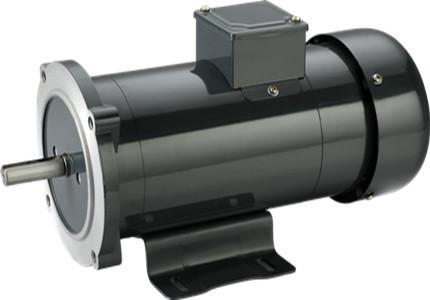

MD04HLL	3/4	1750	24	56C (Low Noise)	TEFC	31.8	27	30

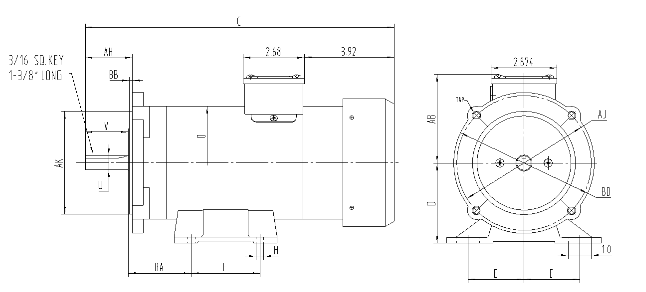

Dimension Chart (All Dimensions in Inch.)

Model No.

D

2E

F

2F1

H

O

U

V

AB

AH

AJ

AK

BA

BB

BD

TAP

C

MD04HLL

3.5

4.88

3

/

0.34Slot

5.63

0.625

1.88

4.13

2.06

5.875

4.5

2.75

0.12

6.5

3/8-16

14.0
