Model No.	Power(HP)	Speed(RPM)	Arm Volt	MODEL	Curret(Amp.)	Torque(N.m)	App.Weights(Kg)
D6139018N	1/3	1800	90	IEC63	3.6	1.3	6.6
D6131818N	1/3	1800	180	IEC63	1.8	1.3	6.6
D6139030N	1/3	3000	90	IEC63	3.6	0.79	4.5
D6131830N	1/3	3000	180	IEC63	1.8	0.79	4.5
D7139018N	1/3	1800	90	IEC71	3.6	1.3	6.6
D7131818N	1/3	1800	180	IEC71	1.8	1.3	6.6
D7139030N	1/3	3000	90	IEC71	3.6	0.79	4.5
D7131830N	1/3	3000	180	IEC71	1.8	0.79	4.5
D7149018F	1/4	1800	90	IEC71	2.6	0.99	8.2
D7141818F	1/4	1800	180	IEC71	1.3	0.99	8.2
D7149030F	1/4	3000	90	IEC71	2.6	0.6	8
D7141830F	1/4	3000	180	IEC71	1.3	0.6	8
D7139018F	1/3	1800	90	IEC71	3.6	1.3	8.6
D7131818F	1/3	1800	180	IEC71	1.8	1.3	8.6
D7139030F	1/3	3000	90	IEC71	3.6	0.79	8.4
D7131830F	1/3	3000	180	IEC71	1.8	0.79	8.4
D7129018F	1/2	1800	90	IEC71	5.0	1.99	10.2
D7121818F	1/2	1800	180	IEC71	2.5	1.99	10.2
D7129030F	1/2	3000	90	IEC71	5.0	1.19	8.6
D7121830F	1/2	3000	180	IEC71	2.5	1.19	8.6
D7129019F	1/2	1900	90	IEC71	5.0	1.88	10.2
D7121819F	1/2	1900	180	IEC71	2.5	1.88	10.2
D7121119F	1/2	1900	115	IEC71	4.1	1.88	10.2
D7349040F	3/4	4000	90	IEC71	7.6	1.34	8.2
D7341840F	3/4	4000	180	IEC71	3.8	1.34	8.2
D8349018F	3/4	1800	90	IEC80	7.6	2.98	13.2
D8341818F	3/4	1800	180	IEC80	3.8	2.98	13.2
D8349030F	3/4	3000	90	IEC80	7.6	1.78	10.2
D8341830F	3/4	3000	180	IEC80	3.8	1.78	10.2
D8109018F	1	1800	90	IEC80	10.0	3.97	14.2
D8101818F	1	1800	180	IEC80	5.0	3.97	14.2
D8109030F	1	3000	90	IEC80	10.0	2.38	13.2
D8101830F	1	3000	180	IEC80	5.0	2.38	13.2

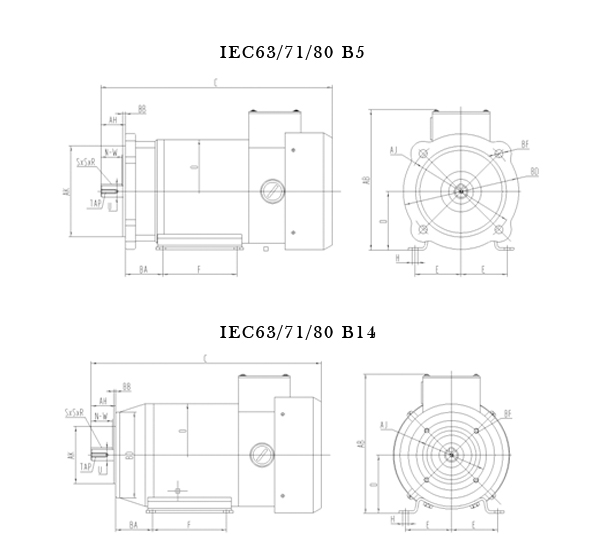

Dimension Chart (All Dimensions in mm.) METRIC(IEC)FRAMES(mm)

Model No.	C	AH	BB	N-W	U	AK	O	AJ	BF	BD
D6139018N	262	23	2.5	19	11	60	98	75	M5	101.6
D6131818N	262	23	2.5	19	11	60	98	75	M5	101.6
D6139030N	227	23	2.5	19	11	60	98	75	M5	101.6
D6131830N	227	23	2.5	19	11	60	98	75	M5	101.6
D7139018N	262	30	2.5	26	14	70	98	85	M6	101.6
D7131818N	262	30	2.5	26	14	70	98	85	M6	101.6
D7139030N	227	30	2.5	26	14	70	98	85	M6	101.6
D7131830N	227	30	2.5	26	14	70	98	85	M6	101.6

Dimension Chart (All Dimensions in mm.) METRIC(IEC)FRAMES(mm)

Model No.	C	2E	F	BA	D	H	U	AH	N-W	S	R	TAP	AJ	AK	BD	BF	BB	O	AB
D7149018F	278	112	90	45	71	7	14	30	26	5	25	M5	130/85	110/70	140/105	9/M6	3.5/2.5	125.4	170
D7141818F	278	112	90	45	71	7	14	30	26	5	25	M5	130/85	110/70	140/105	9/M6	3.5/2.5	125.4	170
D7149030F	278	112	90	45	71	7	14	30	26	5	25	M5	130/85	110/70	140/105	9/M6	3.5/2.5	125.4	170
D7141830F	278	112
