详细介绍
| Model No. | Power(HP) | Speed(RPM) | Arm Volt | NEMA Frame | ENCL. | Curret(Amp.) | Torque(In.Ibs) | App Weight(Ibs) |
| 48CZ1 | 1/4 | 2300 | 90 | NEMA48CZ | TENV | 2.8 | 7 | 12 |

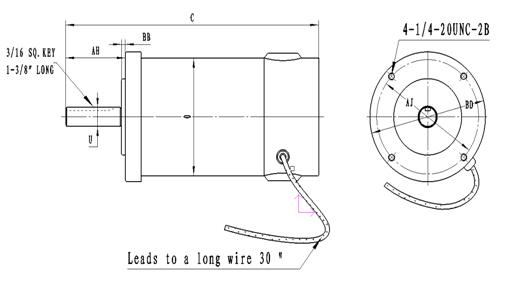

| Dimension Chart (All Dimensions in Inch.) | |||||||||
| Model No. | U | AH | BB | AK | AJ | TAP | BD | O | C |
| 48CZ1 | 0.625 | 2.19 | 0.138 | 2.5 | 3.75 | 1∕4-20UNC | 4.25 | 3.86 | 9.32 |
|
|
|
|
详细介绍
| Model No. | Power(HP) | Speed(RPM) | Arm Volt | NEMA Frame | ENCL. | Curret(Amp.) | Torque(In.Ibs) | App Weight(Ibs) |
| 48CZ1 | 1/4 | 2300 | 90 | NEMA48CZ | TENV | 2.8 | 7 | 12 |
| Dimension Chart (All Dimensions in Inch.) | |||||||||
| Model No. | U | AH | BB | AK | AJ | TAP | BD | O | C |
| 48CZ1 | 0.625 | 2.19 | 0.138 | 2.5 | 3.75 | 1∕4-20UNC | 4.25 | 3.86 | 9.32 |
