Description
Washdown Features:
- High Quality 303 Stainless Steel Shafts
- Interior surfaces are protected by an enamel and polyester coating
- External surfaces are painted with USDA approved Epoxy paint
- Double sealed,over-sized bearings are used
|
Model No. |
Power |
Speed |
Arm Volt |
NEMA Frame |
ENCL. |
Current(Amp.) |
Torque |
App.Weights |
|
WP01AL |
1/4 |
1750 |
90 |
56C |
TEFC |
2.6 |
9.0 |
21.0 |
|
WP01BL |
1/4 |
1750 |
180 |
56C |
TEFC |
1.3 |
9.0 |
21.0 |
|
WP02AL |
1/3 |
1750 |
90 |
56C |
TEFC |
3.6 |
12.0 |
23.0 |
|
WP02BL |
1/3 |
1750 |
180 |
56C |
TEFC |
1.8 |
12.0 |
23.0 |
|
WP03AL |
1/2 |
1750 |
90 |
56C |
TEFC |
5.0 |
18.0 |
25.0 |
|
WP03BL |
1/2 |
1750 |
180 |
56C |
TEFC |
2.5 |
18.0 |
25.0 |
|
WP03AP |
1/2 |
2500 |
90 |
56C |
TEFC |
5.0 |
12.7 |
23.0 |
|
WP03BP |
1/2 |
2500 |
180 |
56C |
TEFC |
2.5 |
12.7 |
23.0 |
|
WP03AX |
1/2 |
3600 |
90 |
56C |
TEFC |
5.0 |
8.8 |
21.0 |
|
WP03BX |
1/2 |
3600 |
180 |
56C |
TEFC |
2.5 |
8.8 |
21.0 |
|
WP04AL |
3/4 |
1750 |
90 |
56C |
TEFC |
7.6 |
27.0 |
30.0 |
|
WP04BL |
3/4 |
1750 |
180 |
56C |
TEFC |
3.8 |
27.0 |
30.0 |
|
WP04AP |
3/4 |
2500 |
90 |
56C |
TEFC |
7.6 |
19.0 |
25.0 |
|
WP04BP |
3/4 |
2500 |
180 |
56C |
TEFC |
3.8 |
19.0 |
25.0 |
|
WP04AX |
3/4 |
3600 |
90 |
56C |
TEFC |
7.6 |
13.2 |
23.0 |
|
WP04BX |
3/4 |
3600 |
180 |
56C |
TEFC |
3.8 |
13.2 |
23.0 |
|
WP05AL |
1 |
1750 |
90 |
56C |
TEFC |
10.0 |
36.0 |
33.0 |
|
WP05BL |
1 |
1750 |
180 |
56C |
TEFC |
5.0 |
36.0 |
33.0 |
|
WP05AP |
1 |
2500 |
90 |
56C |
TEFC |
10.0 |
25.3 |
30.0 |
|
WP05BP |
1 |
2500 |
180 |
56C |
TEFC |
5.0 |
25.3 |
30.0 |
|
WP05AX |
1 |
3600 |
90 |
56C |
TEFC |
10.0 |
17.6 |
25.0 |
|
WP05BX |
1 |
3600 |
180 |
56C |
TEFC |
5.0 |
17.6 |
25.0 |
|
WP06AL |
1.5 |
1750 |
90 |
56C |
TEFC |
15.0 |
54.3 |
43.0 |
|
WP06BL |
1.5 |
1750 |
180 |
56C |
TEFC |
7.5 |
54.3 |
43.0 |
|
WP06AP |
1.5 |
2500 |
90 |
56C |
TEFC |
15.0 |
38.0 |
42.0 |
|
WP06BP |
1.5 |
2500 |
180 |
56C |
TEFC |
7.5 |
38.0 |
42.0 |
|
WP07AL |
2 |
1750 |
90 |
56C |
TEFC |
20.0 |
72.5 |
52.8 |
|
WP07BL |
2 |
1750 |
180 |
56C |
TEFC |
10.0 |
72.5 |
52.8 |
|
WP07AP |
2 |
2500 |
90 |
56C |
TEFC |
20.0 |
50.7 |
52.0 |
|
WP07BP |
2 |
2500 |
180 |
56C |
TEFC |
10.0 |
50.7 |
52.0 |

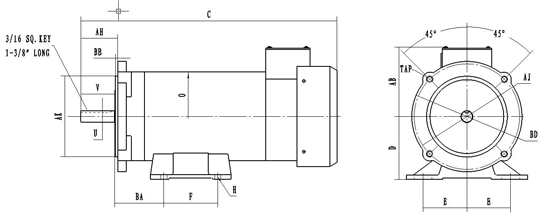

Dimension Chart (All Dimensions in Inch.)
Please view PDF File.
https://wsimg.esonmotors.com/Upfile/465/Admin/upload/kindeditor/file/20180327/20180327132139_21745.pdf
