Description
|
Model No. |
Power |
Speed |
Arm Volt |
NEMA Frame |
ENCL. |
Current |
Torque |
|
MDTC01AL |
1.5 |
1750 |
90 |
143/145 |
TEFC |
16.0 |
54 |
|
MDTC01BL |
1.5 |
1750 |
180 |
143/145 |
TEFC |
8.0 |
54 |
|
MDTC01BP |
1.5 |
2500 |
180 |
143/145 |
TEFC |
8.0 |
38 |
|
MDTC01BX |
1.5 |
3600 |
180 |
143/145 |
TEFC |
8.0 |
26 |
|
MDTC05AL |
2 |
1750 |
90 |
143/145 |
TEFC |
19.0 |
72 |
|
MDTC05BL |
2 |
1750 |
180 |
143/145 |
TEFC |
9.5 |
72 |
|
MDTC05BP |
2 |
2500 |
180 |
143/145 |
TEFC |
9.5 |
50 |
|
MDTC10AL |
3 |
1750 |
90 |
143/145 |
TEFC |
28.0 |
108 |
|
MDTC10BL |
3 |
1750 |
180 |
143/145 |
TEFC |
14.0 |
108 |
|
MDTC10BP |
3 |
2500 |
180 |
143/145 |
TEFC |
14.0 |
76 |

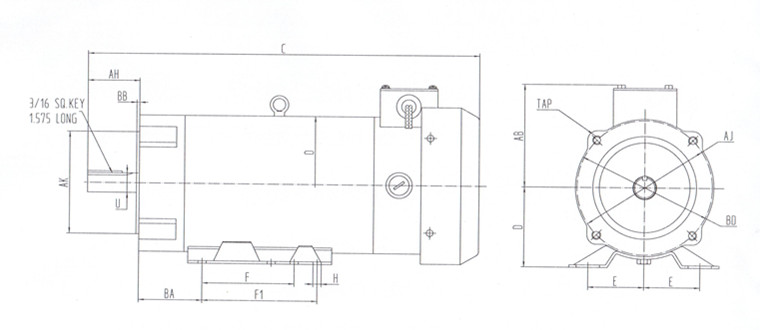

Dimension Chart (All Dimensions in Inch.)
Please view PDF File.
