Description
|
Model No. |
Power |
Speed |
Arm Volt |
NEMA Frame |
ENCL. |
Current |
Torque |
App.Weights(Ibs) |
|
MD01AL |
1/4 |
1750 |
90 |
56C |
TEFC |
2.6 |
9.0 |
21.0 |
|
MD01BL |
1/4 |
1750 |
180 |
56C |
TEFC |
1.3 |
9.0 |
21.0 |
|
MD02AL |
1/3 |
1750 |
90 |
56C |
TEFC |
3.6 |
12.0 |
23.0 |
|
MD02BL |
1/3 |
1750 |
180 |
56C |
TEFC |
1.8 |
12.0 |
23.0 |
|
MD03AL |
1/2 |
1750 |
90 |
56C |
TEFC |
5.0 |
18.0 |
25.0 |
|
MD03BL |
1/2 |
1750 |
180 |
56C |
TEFC |
2.5 |
18.0 |
25.0 |
|
MD03AP |
1/2 |
2500 |
90 |
56C |
TEFC |
5.0 |
12.7 |
23.0 |
|
MD03BP |
1/2 |
2500 |
180 |
56C |
TEFC |
2.5 |
12.7 |
23.0 |
|
MD03AX |
1/2 |
3600 |
90 |
56C |
TEFC |
5.0 |
8.8 |
21.0 |
|
MD03BX |
1/2 |
3600 |
180 |
56C |
TEFC |
2.5 |
8.8 |
21.0 |
|
MD04AL |
3/4 |
1750 |
90 |
56C |
TEFC |
7.6 |
27.0 |
30.0 |
|
MD04BL |
3/4 |
1750 |
180 |
56C |
TEFC |
3.8 |
27.0 |
30.0 |
|
MD04AP |
3/4 |
2500 |
90 |
56C |
TEFC |
7.6 |
19.0 |
25.0 |
|
MD04BP |
3/4 |
2500 |
180 |
56C |
TEFC |
3.8 |
19.0 |
25.0 |
|
MD04AX |
3/4 |
3600 |
90 |
56C |
TEFC |
7.6 |
13.2 |
23.0 |
|
MD04BX |
3/4 |
3600 |
180 |
56C |
TEFC |
3.8 |
13.2 |
23.0 |
|
MD05AL |
1 |
1750 |
90 |
56C |
TEFC |
10.0 |
36.0 |
33.0 |
|
MD05BL |
1 |
1750 |
180 |
56C |
TEFC |
5.0 |
36.0 |
33.0 |
|
MD05AP |
1 |
2500 |
90 |
56C |
TEFC |
10.0 |
25.3 |
30.0 |
|
MD05BP |
1 |
2500 |
180 |
56C |
TEFC |
5.0 |
25.3 |
30.0 |
|
MD05AX |
1 |
3600 |
90 |
56C |
TEFC |
10.0 |
17.6 |
25.0 |
|
MD05BX |
1 |
3600 |
180 |
56C |
TEFC |
5.0 |
17.6 |
25.0 |
|
MD06AL |
1.5 |
1750 |
90 |
56C |
TEFC |
15.0 |
54.3 |
43.0 |
|
MD06BL |
1.5 |
1750 |
180 |
56C |
TEFC |
7.5 |
54.3 |
43.0 |
|
MD06AP |
1.5 |
2500 |
90 |
56C |
TEFC |
15.0 |
38.0 |
42.0 |
|
MD06BP |
1.5 |
2500 |
180 |
56C |
TEFC |
7.5 |
38.0 |
42.0 |
|
MD07AL |
2 |
1750 |
90 |
56C |
TEFC |
20.0 |
72.5 |
52.8 |
|
MD07BL |
2 |
1750 |
180 |
56C |
TEFC |
10.0 |
72.5 |
52.8 |
|
MD07AP |
2 |
2500 |
90 |
56C |
TEFC |
20.0 |
50.7 |
52.0 |
|
MD07BP |
2 |
2500 |
180 |
56C |
TEFC |
10.0 |
50.7 |
52.0 |

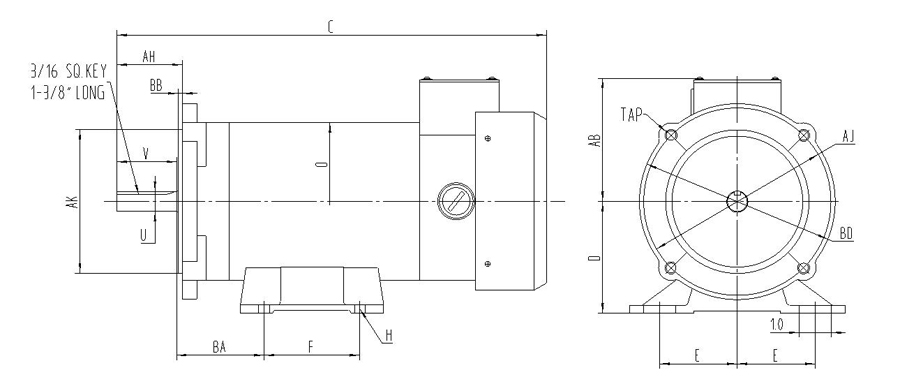

Dimension Chart (All Dimensions in Inch.)
Please view PDF File.
https://wsimg.esonmotors.com/Upfile/465/Admin/upload/kindeditor/file/20180327/20180327094850_41232.pdf
